veroderm

VeroSONICS

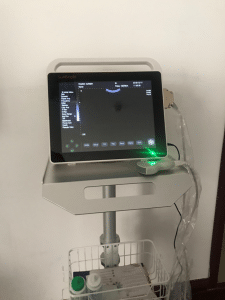

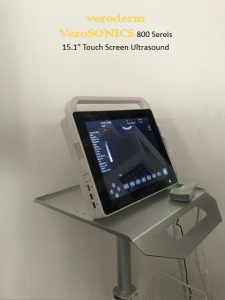

The 800 Series Touch Screen Ultrasound



Description

1. Large 15″ LED color display with real Doppler function USB ports, VGA port and 2 probe connectors.
2. Built-in battery contentious operating battery for 3 hours
3. Main Applications: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics/Musculoskeletal
4. IMAGING MODES: B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, CF+B model simultaneously, PDI Color, Dual Color, Simultaneous 2D/3D Color Compound, PW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD. Anatomy M, Color M mode
5. Compatible with printers. Adjustable printed area pictures, reports or picture & report
6. Built-in DICOM 3.0 protocol
7. Multi-lingual function: English, Spanish, Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai, and as requested.

Physical specifications

15.1′ high-resolution color LED backlight LED display, with high contrast and wide viewing angle.

Adopts ARM7 embedded control system, +FPGA signal processing system + well-selected ultrasound hardware system, for a perfectly stable unit.

Body marks: total 64 body marks indicating probe position

Display mode: B, 2B, 4B, B/M, M;

Adjustable depth: 10 grades, max depth 236mm；

Gain: 0～127dB;

Contrast: 27～90dB;

Grayscale: 256;

8 steps intelligent TGC;

Frame frequency: 30 frames

8 pseudo colors;

Cine loop：256 frames;

Puncture guide function with 2 correctable puncture guiding lines (adjustable angle & position); the gravel software package with real-time position line measurement



Measurements

– General measurement: distance perimeter, area, volume, angle, length, area stenosis ratio measurement.
– Cardio measurement: Depth, slope, heart rate, cycle;
– Gynecology measurement and analysis: gynecology general measurement and gynecology report.
– OB measurement including 15 kinds of obstetric software, several GA measurements, amniotic fluid index, fetal growth curve and OB report.
– Urology measurement and analysis: residual urine volume, prostate volume, and urology report.

One Key Function Operation

– One-key STORE: concise and practical;
– One-key REVIEW: fast, practical image review function;
– One-key PRINT;
– One-key TRANSFER; transfer the current frozen image to the network station to complete its image text report and print. With built-in network workstation to complete data & report management;

with Adjustable display brightness

Dual TV output: PAL/NTSC, can connect video printer when necessary;
Power supply: 100-240V～ 1.2-0.6A frequency：50-60Hz;
Power supply adaptor output: DC12.8V 3.0A;

Main unit weight: 2.9kg (without accessories);
Main unit dimension: 380×300×65mm（L×W×H);

Main basic configuration：

  • Main unit                          1pc;
  • 3.5MHz convex probe    1pc;
  • Power supply adaptor    1pc;
  • Reticle                                1pc;

 Optional probes

  • 6.5MHz multi-frequency trans-vaginal probe
  • 5.0MHz/ 6.5MHz micro-convex probe
  • 7.5MHz multi-frequency linear probe
  • 7.5MHz multi-frequency cavity probe

Battery charger

Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
